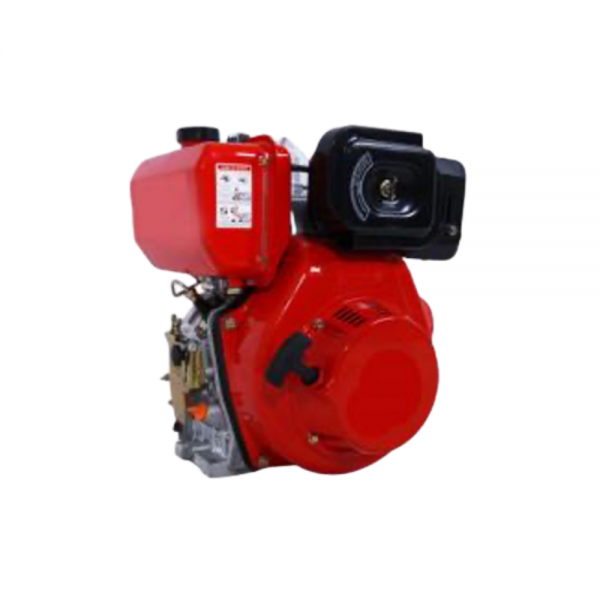

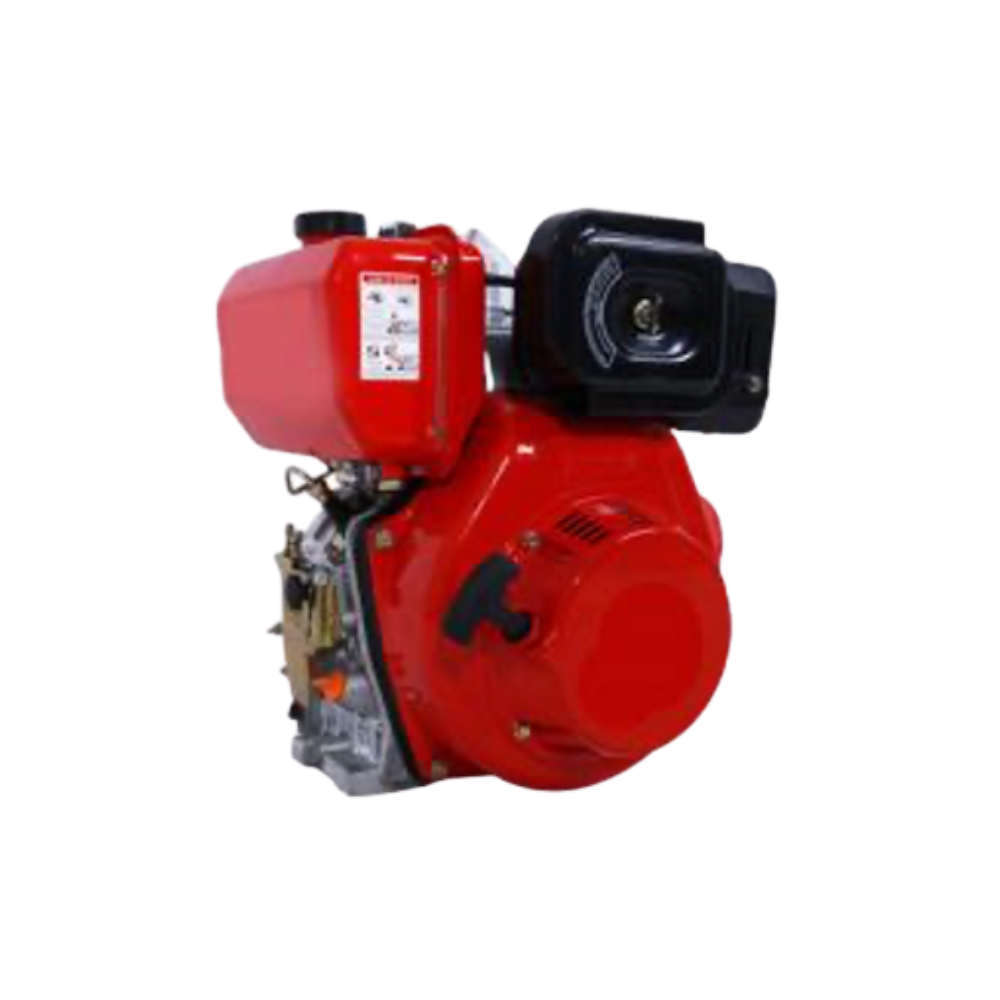

Stroke Air Cooled Diesel Engine 3HP to 11HP (KA186F)

Κωδικός προϊόντος: TW186F Κατηγορία:


Engine Type: air-cooled 4-stroke OHV single-cylinder
Bore*Stroke mm*mm: 86*70
Displacement ml: 406
Engine Speed rpm: 3000/3600
Max Output HP: 8.8/10.0
Rated Output HP: 7.7/9.0
Power Takeoff: crankshaft or camshaft
Starting System: recoil starting
Fuel Tank Capacity I: 5.5
Oil Capacity I: 1.65
Net Dimension mm: 470*417*494
Overall Dimension mm: 500*470*553
N.W/G.W kg: 48/53
20ft unit: 220
